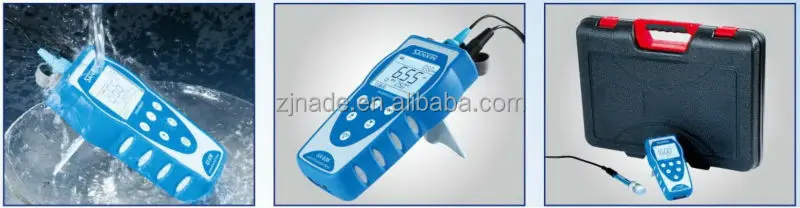

NADE Waterproof Portable Conductivity Meter SX813(USB)

20 Items sold in last 3 minutes

⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀

☎️ Contact Us for any inquiry

13 People watching this product now!

There are 6 models of SX800 Series portable water quality analyzer/electrochemical meter, pls kindly choose suitable model by click the model number:

Measuring parameters	SX811	SX813	SX816	SX823	SX825	SX836
pH/mV	√			√	√	√
Cond./TDS/Sal./Res.		√		√		√
DO			√		√	√
Temperature	√	√	√	√	√	√

NADE Waterproof Portable Conductivity Meter SX813(USB)

Product Description

The most cost effective portable conductivity meter, measurement of conductivity, TDS, salinity and resistivity of water solutions, suited for industrial and mining factories, water treatment engineering and environmental protection field, especially suited in field and on-site.

Introduction:

1~4 calibration points can be chosen, the meter provides calibration guide and automatic checking function.
The meter is able to switch among conductivity, TDS, salinity and resistivity measurement mode. For TDS measurement, the coefficient is adjustable.
The meter is able to recognize up to 8 types of conductivity standard solutions. There are two options of standard buffer solutions: USA series and Chinese series (CH), there is also customer-defined solution calibration.
The meter has an automatic range feature with automatic non-linear temperature compensation for pure water and high purity water with conductivity values lower than 10uS/cm greatly improving accuracy and suitable for the electricity, microelectronics and pharmaceutical industries.
Equipped with calibration solution and portable case and suited in field and on site.
Meter meets IP57 rating.

Specifications

Conductivity	Range	Cond:0~200mS/cm divided into five ranges: (0.00~19.99)μS/cm (20.0~199.9)μS/cm (200~1999)μS/cm (2.00~19.99)mS/cm (20.0~199.9)mS/cm TDS:(0 ~ 100)g/L Salinity:(0 ~ 100)ppt Resistivity:(0 ~ 100)MΩ·cm
	Resolution	0.01/0.1/1μS/cm 0.01/0.1 mS/cm
	Accuracy	±1.0% FS ±1digit
	Temperature compensation	(0 ~ 50)°C(manual or automatic)
	Electrode constant	0.1 / 1 / 10 cm-1
Temperature	Range	0~100°C
	Resolution	0.1℃
	Accuracy	±0.5℃±1digit
Other Technical Parameters	Data storage	500 groups
	Storage content	Serial number, date, time, measuring value, measuring unit and temperature value
	Power	AAA batteries × 3 (1.5V× 3) / DC5V adaptor ( USB port)
	Dimension & Weight	Meter: (88×170×33 )mm / 313g; Portable case: (360×270×76)mm/1.6kg
	IP rating	IP57 dustproof and waterproof

Standard package:

1. SX813 portable conductivity meter	1unit
2. 2301T-Q plastic conductivity electrode	1pc
3. Conductivity calibration solution (84S /1413 S/cm/12.88 mS/cm /50mL)	1bottle each
4. PC-Link communication software disk	1disk
5. USB communication cable	1pc
6. USB adaptor (DC 5V)	1pc
7. Manual	1book
8. Small portable case	1pc

Optional accessories

Accessory Category	Description	Specifications
Conductivity electrode	2310T-Q plastic conductivity electrode(K=10)	Suited for solution with polyelectrolyte such as seawater and strong brine, have automatic temperature Compensation function,4 pin connector.
	DJS-0.1-Q glass conductivity electrode(K=0.1)	Test conductivity of high purity water, there is also flow cell, have automatic temperature compensation function, 4 pin connector.
	Glass flow cell	Match DJS-0.1-S electrode.
Conductivity standard	84 μS/cm conductivity standard	500mL/250mL/50mL(bottle)
	1413 μS/cm conductivity standard	500mL/250mL/50mL(bottle)
	12.88 mS/cm conductivity standard	500mL/250mL/50mL(bottle)
	146.6 μS/cm conductivity standard	500mL/250mL/50mL(bottle)
	1408 μS/cm conductivity standard	500mL/250mL/50mL(bottle)
	12.85 mS/cm conductivity standard	500mL/250mL/50mL(bottle)
Portable case	Small portable case(360×270×76)mm	Match SX811, SX813
