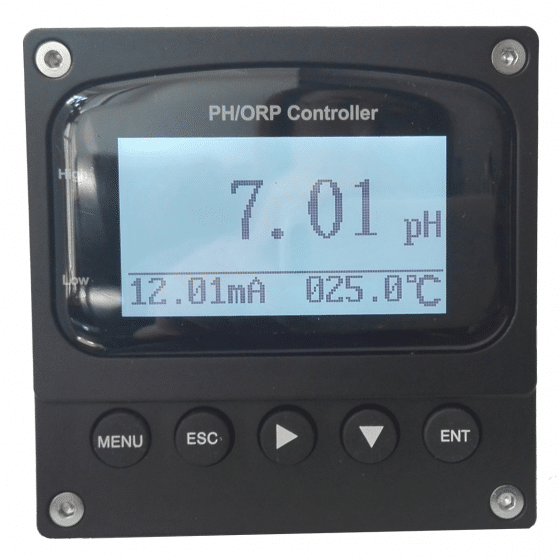

Online PH ORP controller
500.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Place of Origin: | Made in china |
|---|---|
| Brand Name: | meter2u |
| Model Number: | PH-6850 |
| Certification: | ISO9000 |
Product description:
Intelligent online pH/ORP monitoring / control instrument
The embedded singlechip realizes the intelligent three points calibration functiont, and has the function of prompt the user to calibrate according to the calibration process. Automatic recognition of error. Simple, safe and humane calibration mode.
High input impedance, automatic and manual temperature compensation programmable, adapted to the various types sensors for pH/ORP.
Controller protection grade: IP65
Programmable relay control output.
Original parameter recovery function
A variety of output current, control, 485 communication, to meet different application users’ requirements
Widely used in chemical, pharmaceutical, printing and dyeing, metallurgy, electronics, electroplating, environmental protection, water treatment, farming and other industries of the pH / redox potential detection and control
| Model | PH-6850 |
| Measure range | pH range: 0.00～14.00 pH ORP range: 2000～＋2000mV |
| Accuracy | pH : ±0.01 pHORP：±1mV |
| Temperature compensation | pH：temperature compensation is based on 25 centigrade |
| Medium temperature | -25℃～125℃ |
| Mating electrode | 2/3 Composite (sewage, pure water) electrode;ORP electrode |
| Calibration way | 4.00；6.86；9.18 3 pints calibration |
| Display mode | Backlit LCD display, adjustable brightness, 128*64 bit LCD |
| Current output | photoelectric isolation can migrate 4 ~ 20mA |
| Control output | Programmable, normally open ,high limit, low limit relay |
| Communication output | RS485 communication, baud rate: 2400, 4800, 9600, 19200 |
| Power | AC-220V or AC-110V |
| Working temperature | Environment range: 0～50℃ relative humidity: ≤85% |
| Overall size | 96×96×130mm（H×W×D） |
| Hole size | 93×93mm |
| Installation method | panel-mounted (embedded) |
