Phase Shifted Fiber Bragg Grating 1550nm LPFG Long Period Fiber Grating
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | PHASE SHIFT |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Product Name: | Phase Shift Fiber Grating | Central Wavelength: | 1550nm |
|---|---|---|---|
| Application: | DWDM | Insertion Loss: | < 0.5dB |
| Fiber Termination: | Bare Fiber FC/UPC Or FC/APC | Fiber Type: | SMF-28 Or Compatible |
| High Light: |
Phase Shifted Fiber Bragg Grating, 1550nm Fiber Bragg Grating, LPFG Long Period Fiber Grating |
||
Long period fiber grating DWDM 1550nm Fabry-Perot Lower Loss
Long period fiber grating Description:
long period fiber grating make by the period refractive index moudulation generated by optical fiber axis upward , whose period generally is more than 100um.

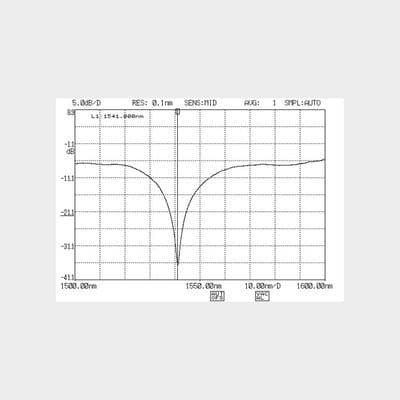

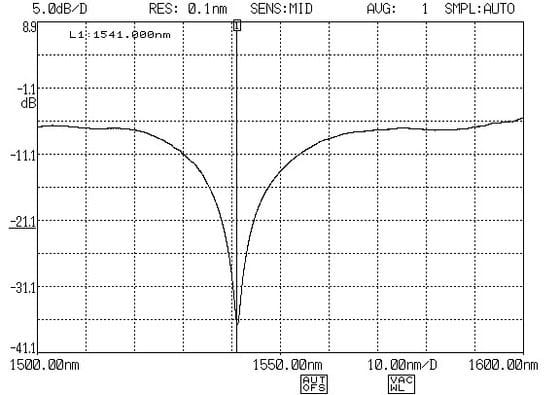

Its coupling principle: Fiber fundamental mode transmitting forward is coupled in several certain central wavelength cladding mode transmitting forward which lost fast. Thus LPFG basically do not have backward refletivity, but only several absorption peak with certain wavelength in spectrogram.
Feature:
Non-Reflecting Type Low Insert Loss
Application:
Band-Pass Filter Gain Flatenning Filter BioChamical Sensor
Specification details:
| Parameter | Unit | Value | Remark |
|
Central Wavelength |
nm | C+L | |
|
Penertration Depth
|
dB | 1-30 | |
|
Wavelength Repeat |
nm | +/-5 | |
|
Grating Period |
um | 550 | |
|
Grating Length |
cm | 2-3 | |
|
Insert Loss |
dB | <0.5 | +/-5nm @center wavelength |
|
Fiber Pigtail |
— | Bare Fiber, FC/UPC Or FC/APC | Clients optional |
|
Fiber type |
SMF-28 Or Compatible |
