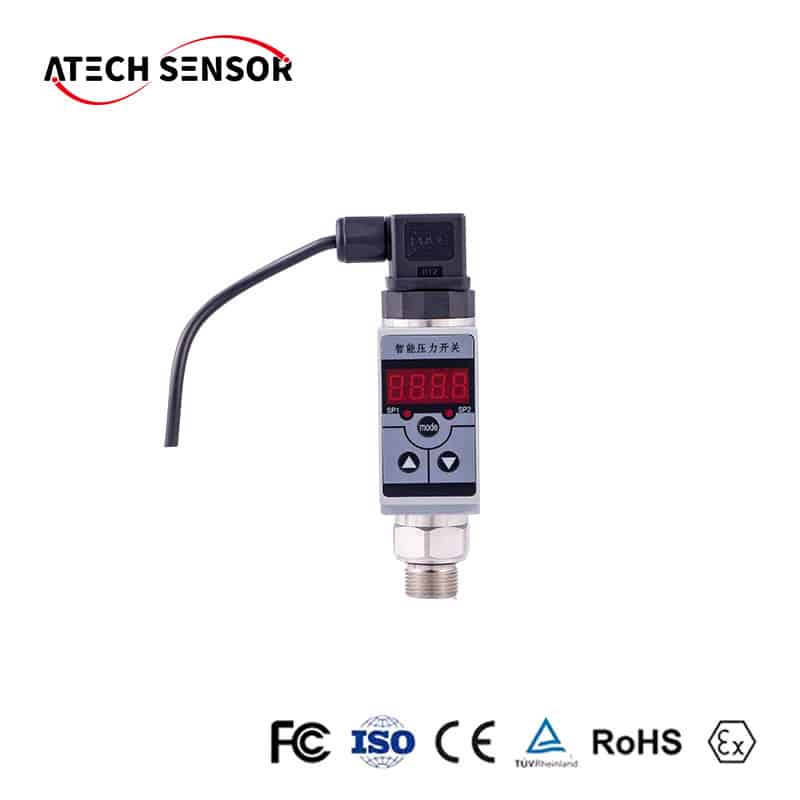

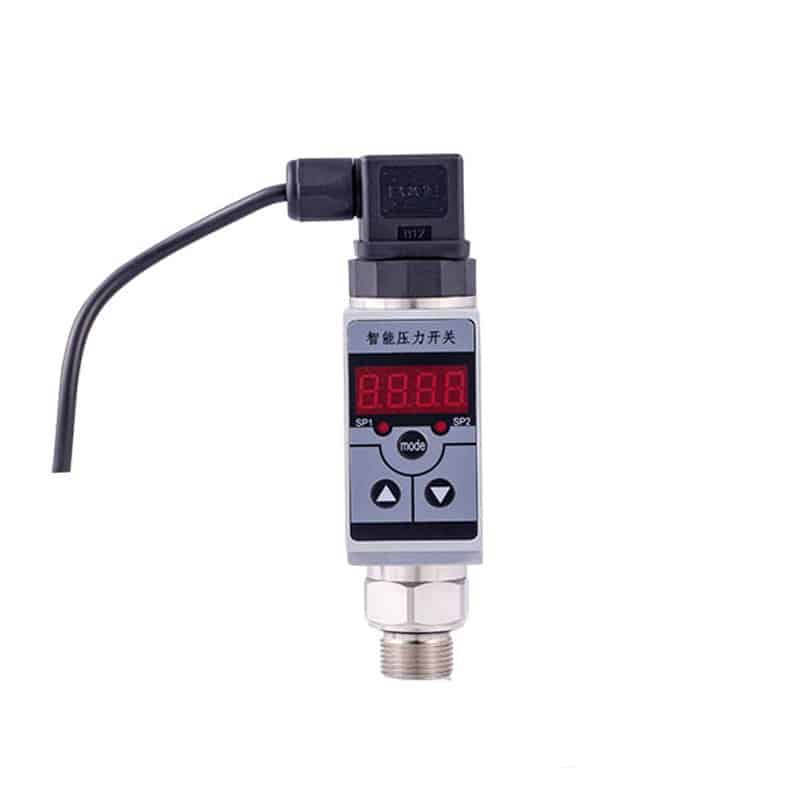

PT250 –Intelligent Pressure Switch
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
PT250 Intelligent pressure switch is a pressure measurement and control products with display and control. The product is all-electronic structure, preceding part use silicon oil-filled pressure sensor cell which has a insulation film. The processing output signal from the amplifier is given away with high accuracy A / D converter, converted into digital signals to control the two-way switches.
PT250 pressure switch is easy to operate, easy to debug, safe and reliable.
Product Features
● With LED display
● Button set-up for various parameters, easy for operation
● Two way switch out put, Load capacity of 1.2A
● CE certificate
● Silicon sensor cell employed
Product Specification
|
pressure medium |
gas liquid compatible stainless steel |
|
pressure ranges |
-1 – 0 bar ,0- 0.1bar, 0- 1000bar |
|
supply voltage |
24VDC |
|
accuracy |
<= 0.5%FS (standard) |
|
display |
-1999 -9999 4 digital number with LED display |
|
display accuracy |
+- 0.1%FS |
|
<3W |
|
|
supply voltage |
10~30V |
|
medium temperature range |
-40~85°c |
|
operating temperature range |
-40~+85°c |
|
storage temperature range |
-40~+85°c |
|
switch type |
PNP /NPN |
|
Switch endurance |
>1,000,000 times |
|
insulation resistance |
>100MΩ@ 50VDC |
|
process connection |
G1/4 or others |
|
electrical connection |
DIN 43650 or others |
|
long term stability |
0.5%FS/year |
|
material of pressure membrane |
316L |
|
Response time |
<=3ms |
|
weight |
210g |
Product Dimensions
