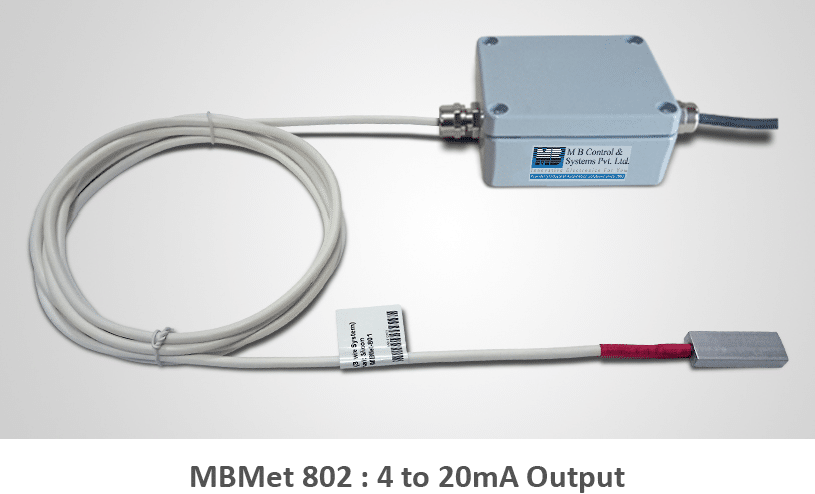

PV Module Temperature Sensor

Atech Sensor series offers best-in-class surface temperature sensors for universal applications as well as for PV Module temperature measurement. The sensor comes integrated with a stable aluminum cuboid and Teflon insulated cable. Ideal for use in industrial and field environments for surface temperature measurement, these sensors are compact, easy-to-install and offer high accuracy.

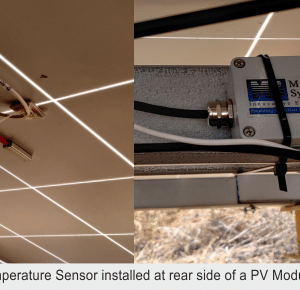

Our temperature sensors are designed for surface temperature measurement at the rear side of PV modules. Different industrial output signals are available like RTD PT100/1000, 4 to 20mA, and Modbus RS-485. Data sheets are available below in the downloads section.

Unique Features & Benefits

●Best in class measurement accuracy and technology
●Measures temperature across a wide range : -40° to +110°C
●Precision RTD Class – A sensing element
●With high temperature adhesive
●Isolated Modbus RTU RS-485 digital serial communications (For 803 series only)

●Measurement Range : -40° to +110°C
●Temperature Accuracy :±0.2°C (For 802 and 803 series only)
●Class A (For 801 series)
●Temperature Stability : <0.1°C per year
●Sensor Cable-Length : Silicon insulated cable – 3 meters
●Operating Ambient Temperature : -10°C to +70°C
●Operating Ambient Humidity : 0.1 to 99.9% RH
