R-2020Ex Explosion-proof 20L Rotary Evaporator
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Description

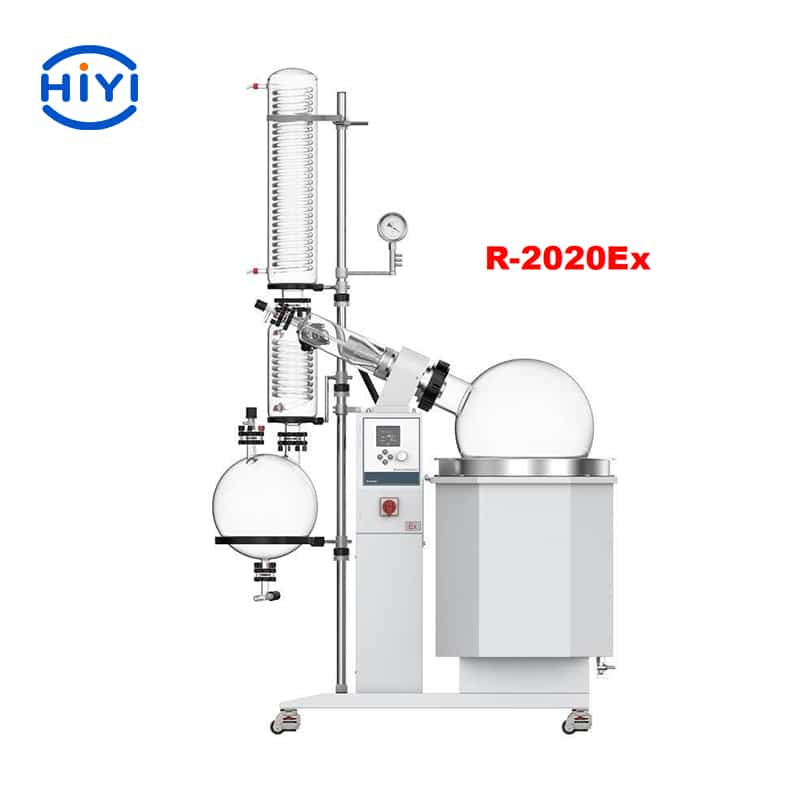

Explosion-proof Rotary Evaporator
R-2020Ex
Features:
- High borosilicate 3.3 glass has good physical and chemical properties.
- Main and auxiliary condensers, high efficiency triple-circulating condensing tube has bigger condensing area.
- High borosilicate glass three-way flask, prevent flushing and bumping, ensure safe operation.
- Patented technology of double sealing of Teflon (PTFE) and FV rubber ensures negative pressure level.
- Auto switch valve makes continuous collecting possible without affecting vacuum degree and without stopping distillation.
- The motor, heater, electric control box and liquid level switch are all explosion proof type, explosionproof grade: ExdⅡBT4, all explosion-proof parts have certificates from manufacturer.
- Motorized stainless steel water bath, has liquid level protection and anti-dry burning functions.
- Quick-release valve for easy installation and removal of glass components.
- PTFE discharge valve is corrosion resistant and contamination free.
- Lockable casters, easy to move and lock.
- LCD control panel
| Model | R-2020Ex | |
| Temperature range | RT+5~95C | |
| Temperature and rotation speed | LCD display | |
| Heating power | 4000W | |
| Overall power | 4500W | |
| Vacuum Leakage | ≤2kPa/h | |
| Rotary motor power | 370W | |
| Speed-regulation | Frequency control | |
| Rotation speed | 20~130rpm | |
| Condenser type | Vertical, main + auxiliary condensers high efficient triple-coil condenser | |
| Condensing area | Main condenser: 0.948 m
Auxiliary condenser: 0.358 m |
|
| Rotary flask | 20L, flange opening Φ125mm | |
| Receiving flask | 10L | |
| Water bath | One-mold piece, SUS304 ,Φ450mm×260mm | |
| Water bath temperature stability | ±1.5 C | |
| Lifting method | Motorized lift | |
| Lifting distance | 0~160mm | |
| Vacuum sealing (Patent technology) | PTFE + PTFE-Viton rubber | |
| Discharge valve (valve plug) | PTFE | |
|
Evaporating speed |
Water | About 5.0 L/h |
| Ethanol | About 14.3L/h | |
| Protection functions | Over-current, ground-fault, over-temperature, run-dry protection | |
| Communication protocol | RS485 interface
Standard MODBUS RTU communication protocol |
|
| Ex-grade of electric control box | ExdⅡBT4 | |
| Protection grade of electric control | IP65 | |
| Ambient temperature | 5~35C | |
| Relative humidity | ≤ 70% | |
| Movement | Lockable casters | |
| Power supply | 3~,380V ,50Hz 1~220V/60Hz | |
| Dimensions | 1210W×740D×2040H mm | |
