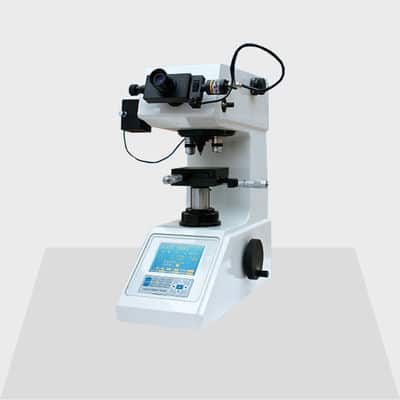

SAMYON Microhardness Testing Machine 5-3000HV ASTM E384 Standard
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | HVS-1000A |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Name: | Microhardness Tester | Standard: | ASTM E384 |
|---|---|---|---|
| Test Force: | 10, 25, 50, 100, 200, 300, 500, 1000gf | Measuring Range: | 5-3000HV |
| Depth Of Throat: | 110mm | Max Sample Height: | 75mm |
| High Light: |
Microhardness Testing Machine, 3000HV Micro Hardness Testing Machine, ASTM E384 Micro Hardness Tester |
||
Model HVS-1000A Digital Display Microhardness Tester For Vickers Hardness Of Steel With Range 5-3000HV
Model Hvs-1000a Digital Display Microhardness Tester
Application:
It is used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts. The testing conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384.
Standard:
ISO 6507-2:2018 Metallic materials – Vickers hardness test – Part 2: Verification and calibration of testing machines
ASTM E384 – 17 Standard Test Method for Microindentation Hardness of Materials
ASTM E92 -17 Standard Test Methods for Vickers Hardness and Knoop Hardness of Metallic Materials
Parameters:
| Item | Name | Details |
| 1 | Test force | 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904,9.807N (10, 25, 50, 100, 200, 300, 500, 1000gf) |
| 2 | Measuring range | 5-3000HV |
| 3 | Depth of throat | 110mm |
| 4 | Max. Height of specimen | 75mm |
| 5 | Hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3,HV0.5, HV1 |
| 6 | Magnifications of the measuring system | 400X (measuring), 100X (observing) |
| 7 | Min. scale value of the optical micrometer | 0.01μm |
| 8 | Measuring range | 200μm |
| 9 | Dimension | 470 x 320 x 500mm |
| 10 | Weight | approx. 40kg |
| 11 | Power | 220V AC or 110V AC, 50 or 60Hz |
Features:
1. Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384
2. Hardness conversion between different hardness scales
3. Automatic turret shifting between penetrator and objective lens, RS232 data interface, built-in printer
Standard accessories
Coordinate anvil: 1 pc. (Table size: 100 x 100mm, travel: 25 x 25mm,
grade division of micrometer head: 0.01mm)
Thin shaft anvil (Ø0.3- Ø5mm): 1 pc.
Thin plate anvil: 1 pc.
Flat nose pliers: 1 pc.
Large V-notch anvil: 1 pc.
Small V-notch anvil: 1 pc.
Diamond pyramid penetrator: 1 pc.
Micro-Vickers standardized block: 2 pcs.
Optional accessories
RS232 software
SP-5 Vickers Video measuring apparatus
Knoop penetrator
CCD camera and image processing system
