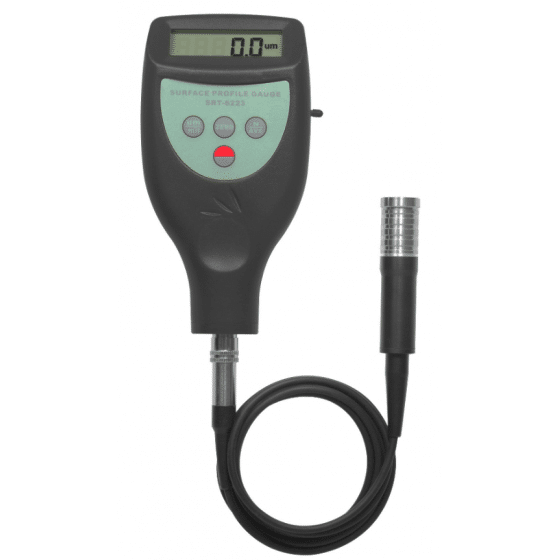

Surface Profile Gauge
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Place of Origin: | Made in china |
|---|---|
| Brand Name: | meter2u |
| Model Number: | SRT-6223+ |
| Certification: | ISO9000 |
Features
* It meets the standards of ASTMD-4417-B, IMOMSC.215(82), SANS5772, US Navy NSI 009-32, US Navy PPI-63101-000. Suitable for the laboratory and for use in harsh field conditions. Accurate, immediate and repeatable results.
* The tungsten carbide tip will last for up to 20,000 readings and can then be easily replaced by the user in the field. Cost per test is significantly lower than other test methods.
* Small in size, light in weight and easy to use.
* Manual or automatic power off.
* Metric/Imperial Conversion.
* With average calculation function.
* Separate Probe.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.
Specification:
| Display | LCD |
| Range | 0 ~ 800 µm/29.5 mils |
| Accuracy | ±5% or ±5µm,(whichever is the greater) |
| Resolution | 0.1µm / 1µm |
| 0.1mils | |
| Principle | Inductance Type |
| Operating | Temperature : 0 ~ 50°C |
| Conditions | Humidity : < 80% RH |
| Power Supply | 4×1.5V AAA(UM-4)Battery |
| Dimensions | 126x65x28 mm |
| Weight | 280 g |
| Stangard
Accessories |
Main Unit |
| Sensor | |
| Standard Sample Plate | |
| Carrying Case (B04) | |
| Operation Manual | |
| Optional Accessories | USB Cable with Software |
| Bluetooth Adapter with Software |
