Universal OEM Pressure Sensor
1,520.00৳
OEM Pressure Sensor uses a high-sensitivity piezoresistive silicon die as sensing component.
Applications
● Industrial process control
● Level measurement
● Gas, liquid pressure measurement
● Pressure checking meter
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description

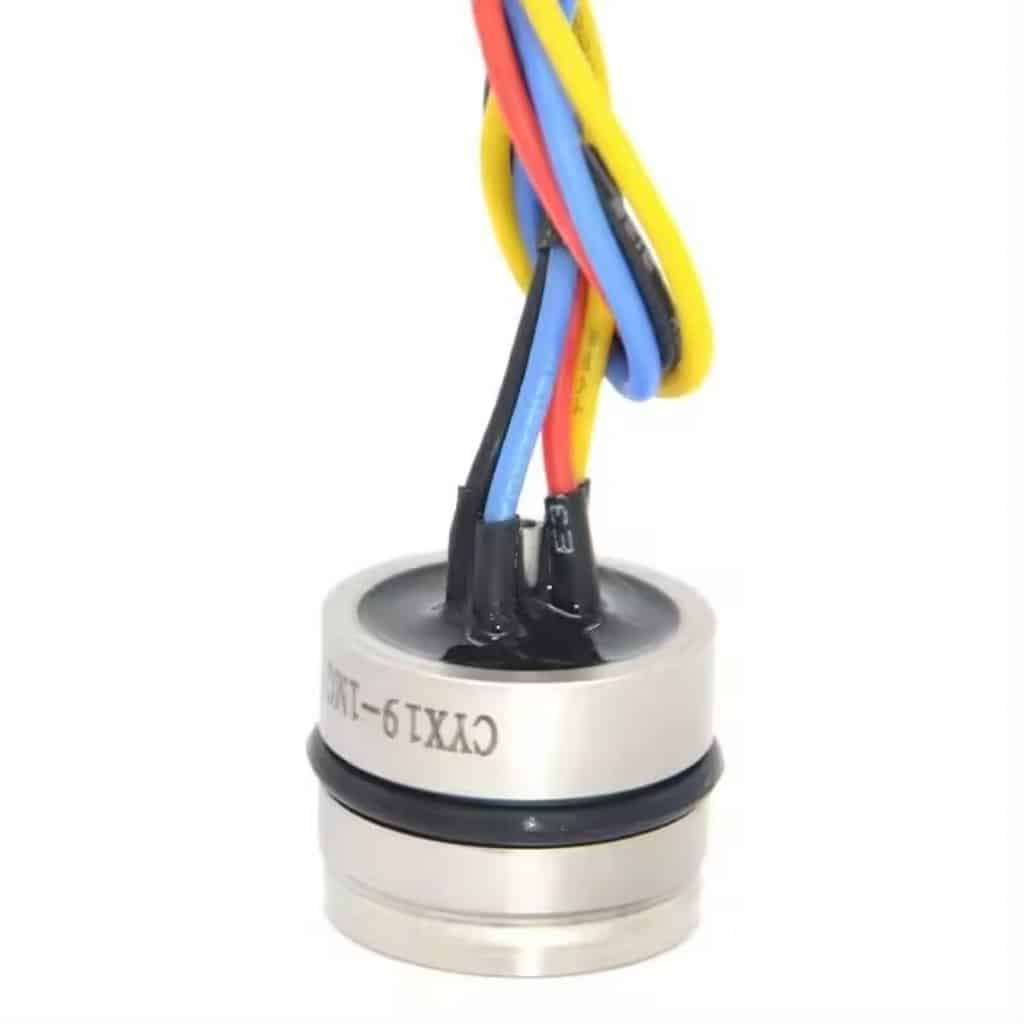

OEM Pressure Sensor uses a high-sensitivity piezoresistive silicon die as sensing component, which is protected against ambient influences by SS316 housing sealed with a concentrically
corrugated diaphragm. Inside the housing, the filled silicone oil assures the measured pressure can be transmitted onto silicon die and then transform the pressure to electric signal.
It is available all pressure ranges from -100kpa to100MPa.
Applications
● Industrial process control
● Level measurement
● Gas, liquid pressure measurement
● Pressure checking meter
● Pressure calibrator
● Liquid pressure system and switch
● Cooling equipment & A/C system
● Aviation and navigation inspection
Product Features
● Pressure range 0～100MPa
● Gauge, Absolute, Sealed gauge
● Constant current/Voltage power supply
● Isolated construction, measure various media
● Φ19mm OEM Pressure Sensor
● Full Stainless Steel 316
● Wide temperature compensation -10℃～80℃
● Long-term stability ±0.2%FS/year
Product Specification
| Model |
Range |
Diameter |
Type |
Accuracy/FS |
Input |
Output |
| Series 1 | 0-2bar-1000bar | 12.6mm | G/A/S | 0.1%-0.2% | 1.5mA | ≤150mV |
| Series 2 | 0-1500bar | 15mm | G/A/S | 0.1%-0.2% | 5V | ≤150mV |
| Series 3 | 0-0.07bar | 19mm | G | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 4 | -1bar-0.1bar-1000bar | 19mm | G/A/S | 0.1%-0.2% | 1.5mA/3.3V/5V/10V | ≤150mV |
| Series 5 | -1bar-0.1bar-1000bar | 19mm | G/A | 0.3%-0.5% | 3.3V | ≤150mV |
| Series 6 | 0.1bar-30bar(Pressure) | 19mm | G/A/S | 0.25% | 1.5mA/5V/10V | ≤150mV |
| -104’℉-185’℉(Temperature) | 0.50% | |||||
| Series 7 | -1bar-0.1bar-1000bar | 19mm | G/A/S | 0.20% | 10-30V | 0.5-4.5V/4-20mA |
| Series 8 | 0-0.35bar-35bar | 19mm | D | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 9 | -1bar-0.1bar-1000bar | 28mm | G/A/S | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 10 | -1bar-100bar | 19mm | G/A/S | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 11 | 0-5bar-100bar | 29.5mm | G/A/S | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 12 | -1bar-0.1bar-35bar | 19mm | G/A/S | 0.1%-0.2% | 1.5mA/5V/10V | ≤150mV |
| Series 13 | 0-0.35bar-60bar | 50mm | G/A/S | 0.20% | 1.5mA/5V/10V | ≤150mV |
| Series 14 | 0-100pa-400bar | 35mm | G/A/S/D | 0.1%-0.2% | 10-30V | 4-20mA/HART |
| Series 15 | 0-2bar-2200bar | 19mm | G/A/S | 0.05%-0.075% | 1.5mA/5V/10V | ≤150mV |
| Measuring Range & Output | ||||
|---|---|---|---|---|
| Range | Overload Pressure | Output/F.S (mV) | Typical Value(mV) | Pressure Type |
| 0~7 kPa | 300% | 65-80 | 55 | G |
| 0~10 kPa | 300% | 35～60 | 45 | G |
| 0~35 kPa | 300% | 55～80 | 70 | G/A |
| 0~70 kPa | 300% | 55～80 | 60 | G/A |
| 0~100 kPa | 300% | 60～85 | 75 | G/A |
| 0~200 kPa | 300% | 65～85 | 75 | G/A |
| 0~400 kPa | 300% | 60～80 | 70 | G/A |
| 0~1.0 MPa | 200% | 80～120 | 100 | G/A |
| 0~2.0 MPa | 200% | 50～70 | 60 | G/A |
| 0~3.5 MPa | 200% | 100～120 | 110 | G/S/A |
| 0~7.0 MPa | 200% | 120～150 | 135 | S/A |
| 0~10 MPa | 200% | 180～230 | 200 | S/A |
| 0~25 MPa | 150% | 140～170 | 150 | S/A |
| 0~40 MPa | 150% | 230～280 | 250 | S/A |
| 0~60 MPa | 150% | 100～160 | 130 | S/A |
| 0~100 MPa | 150% | 100～150 | 120 | S/A |
| Notes: G for Gauge pressure; A for Absolute pressure; D for Differential pressure; S for Sealed gauge. | ||||
| Technical Parameters – Range 0-1Mpa-100Mpa | |||
|---|---|---|---|
| Parameters | Typ. | Max. | Unit |
| Nonlinearity | 0.2 | 0.5 | %FS |
| Hysteresis | 0.05 | 0.08 | %FS |
| Repeatability | 0.05 | 0.08 | %FS |
| Zero Output | ±1 | ±2 | mV DC |
| FS output | 100 | 250 | mV DC |
| Input/ Output Impedance | 2.6 | 5.0 | kΩ |
| Zero Temperature Drift* | ±0.4 | ±1.0 | %FS,@25℃ |
| Sensitivity Temperature Drift* | ±0.4 | ±1.0 | %FS,@25℃ |
| Long-term Stability | 0.2 | 0.3 | %FS/year |
| *The typical value of 0~10kPa & 0~20kPa’s zero temperature drift is 0.4%FS@25℃, max value is 1.6%FS@25℃ | |||
| *The typical value of 0~10kPa & 0~20kPa’s sensitivity temperature drift is 0.4%FS@25℃, max value is 1.6%FS@25℃ | |||
| Construction Performance | |
|---|---|
| Diaphragm | Stainless Steel 316L |
| Housing | Stainless Steel 316L |
| Pressure leading tube | Stainless Steel 316L |
| O Ring | Φ19mm(nitrile rubber or viton) |
| Measuring Medium | Which is compatible with SS316L, viton, nitrile rubber |
| Packing Medium | Silicon Oil |
| Net weight | 30g |
| Electric & Environment Performance | |
|---|---|
| Power supply | ≤3.0mA; DC≤10V DC |
| Insulation Resistance | 500MΩ@100VDC |
| Overpressure | 1.5~3 times FS |
| Vibration(20~2000Hz) | 10gRMS |
| Useful Time(25℃) | >1*100 Million Times @Pressure Circulation(80%FS) |
| Response Time | ≤1ms |
| Storage Temp. | -40~+125℃ |
| Operating Temp. | -40~+85℃ |
| Compensation Temp. | 0~50℃; -10~80℃ |
| Input resistance | 2.7kΩ～5kΩ |
| Output resistance | 3.0kΩ～6kΩ |
