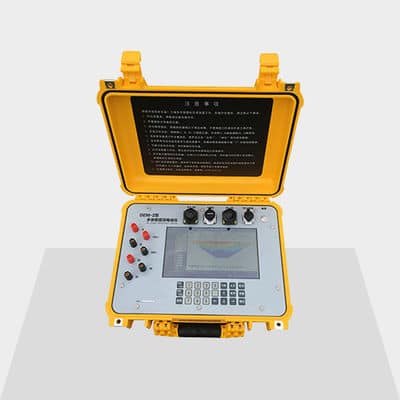

VES Multichannel Resistivity Meter 256 Channels Underground Map 2D 3D
1,520.00৳
| Place of Origin: | CN |
|---|---|
| Brand Name: | SAMYON |
| Certification: | ISO |
| Model Number: | DSM-10 |
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Product Name: | VES Multichannel Resistivity Meter | Channels: | 256 |
|---|---|---|---|
| Parameter: | Primary Potential VP | Function: | Electrical Profiling |
| Data: | Natural Potential Vsp | Color Map: | 2D / Support 3D |
| High Light: |
Multichannel Resistivity Meter, DSM-10 Resistivity Meter, VES Resistivity Meter |
||
VES Multichannel Resistivity Meter 256 Channels Underground Map 2D 3D
Specifications:
It is integrated electrical profiling and VES adopt high density distribute. It is widely used for Geophysical Engineer and hydrogeological investigation.
Main Feature:
1. Water proof and stronge carry case to avoid destroy during transport and exploration hard state.
2. Can directly measure and show the following parameters: Primary Potential VP, Natural potential Vsp, Power current, Apparent resistivity, Apparent Polarization ns, the half-decay time S 0.5, attenuation degree Ds, and integrated excitation parameters ns.
3. With strong anti-common-mode interference and differential-mode interference to ensure the stable and reliable data in high interference areas.
4. Can automatically detect the pass-through of the AB loop and MN loop, and prevent the invalid measurement value due to the abnormal line, which can improve the efficiency of field measurement and facilitate the troubleshooting.
5. Real-time display of Vp lab and the curve in the Vsp measurement process, help the measurement personnel to analyze the validity of the original data.
6. 10.2 inch HD screen with a brightness of 900nit, suitable for field work and support for automatically screen down in the condition of long-term un-operated.
Parameters:
| Voltage Range | -10000mV-+10000mV | Input impedance | >= 50M |
| Voltage precision | 0.001mV | Anti-Frequency 50Hz influence | Better than 120dB |
| Polarization | <=3% +/-0.2,
>=3% +/- 0.1 |
Data Storage | 1GB |
| Polarization Voltage Compensation | +/- 1.25V | Power | Internal 12V/11000mAh
Lithium battery Work 12 hours |
| Current Range | 0-5000mA | Size | 339*295*152mm |
| Current accuracy | 0.01mA | Weight | 5.25kg |
Pictures:
