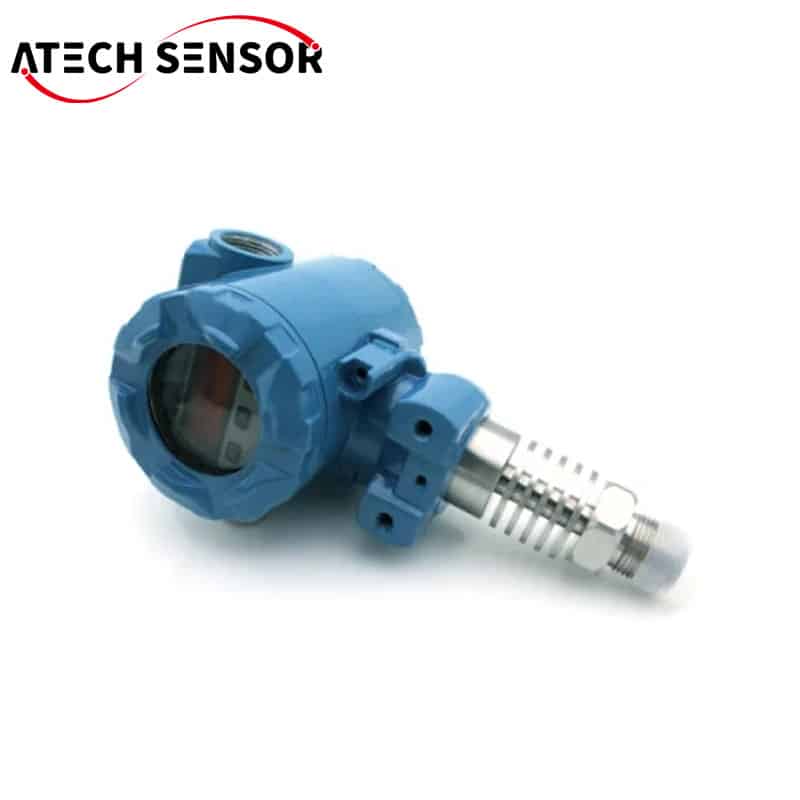

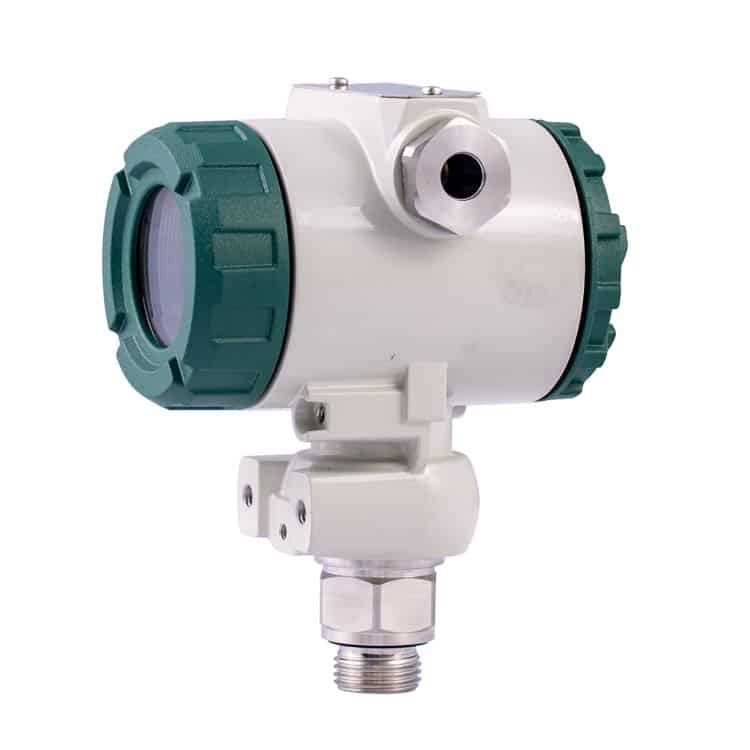

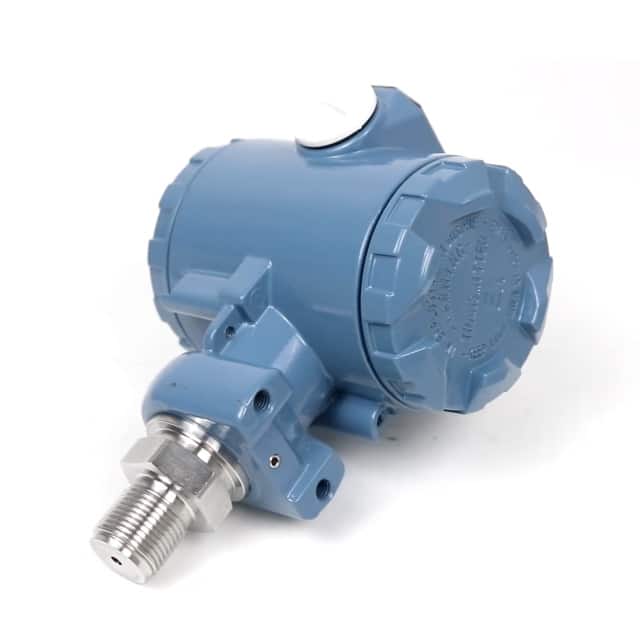

Anti-Explosion Pressure Transmitter
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
PT207 series of Anti-explosion pressure transmitter is a standard and most popular transmitter applied in oil and gas pressure measuring . The products are made of stainless steel. the pressure sensing elements are selected from well-known international brands. Special circuits are adopted to zero and full range conveniently. The products are approved with CE, intrinsically safe, and explosion proof certificates. So it can by applied to dangerous environment where need intrinsically safe and explosion proof.
Feature
● MEMS technology
● Imported silicon sensor chip employed
● Perfect long term stability
● CE certificate
● Intrinsic Safety, Explosion-proof safety
● Sillicon sensor cell employed
Applications
● Frequent Water Supply
● Heating boiler
● oil and gas industry
● Industrial process control
● Real-time Custody for oil well
Product Features
● MEMS technology
● Imported silicon sensor chip employed
● Perfect long term stability
● CE certificate
● Intrinsic Safety, Explosion-proof safety
● Sillicon sensor cell employed
Product Specification
|
pressure medium |
gas liquid compatible stainless steel |
|
pressure ranges |
0~2…600bar |
|
overload pressure |
200%FS |
|
output signal |
4~20mA, 0~5V, 0~10V, 1~5V, 0.5~4.5v |
|
accuracy |
0.5%FS (standard) |
|
load resistance |
RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output) |
|
long term stability |
0.25%FS/year |
|
supply voltage |
10~30V |
|
compensated temperature range |
-10~70°c |
|
operating temperature range |
–40~+85°c |
|
storage temperature range |
-40~+125°c |
|
temperature coefficient of zero |
0.2%FS/10°c |
|
temperature coefficient of span |
0.2%FS/10°c |
|
insulation resistance |
100MΩ@ 50VDC |
|
process connection |
G1/4 or others |
|
electrical connection |
DIN 43650 or others |
|
material of wetted part |
1Cr18Ni9Ti |
|
material of pressure membrane |
316L |
|
material of housing |
Cast aluminium |
Product Dimensions
