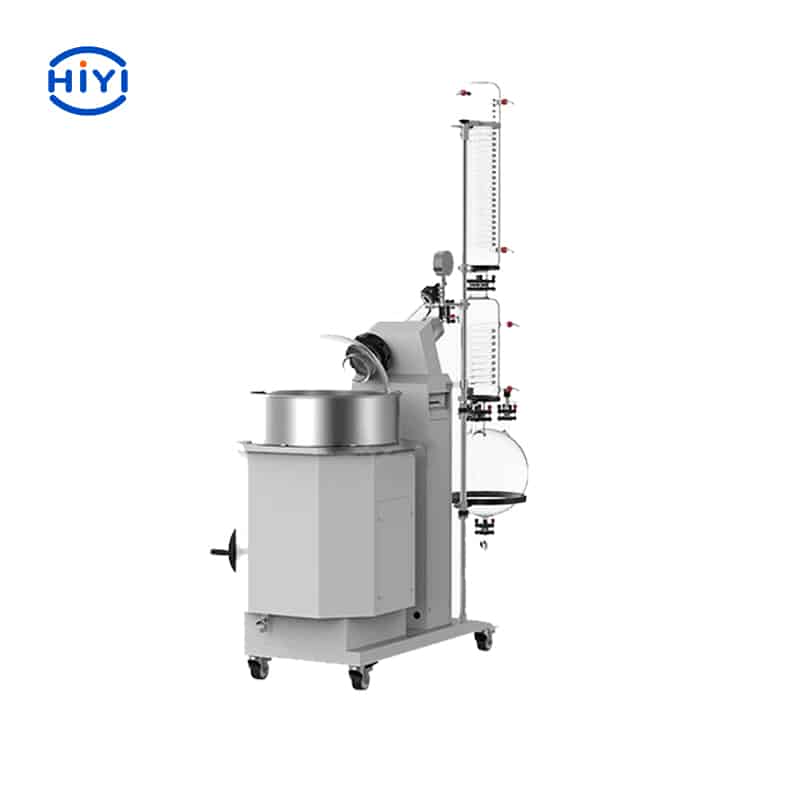

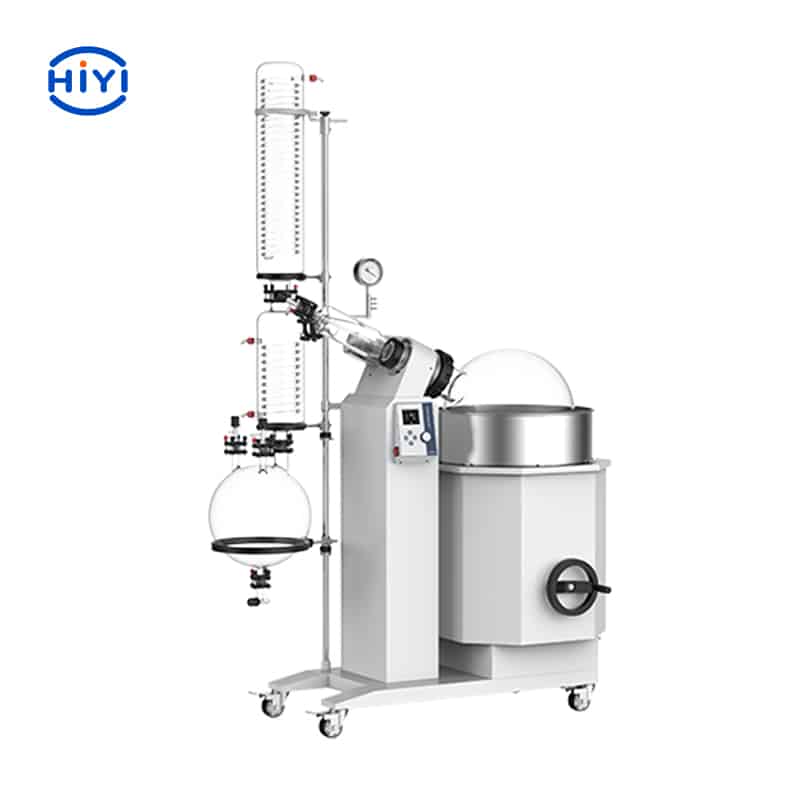

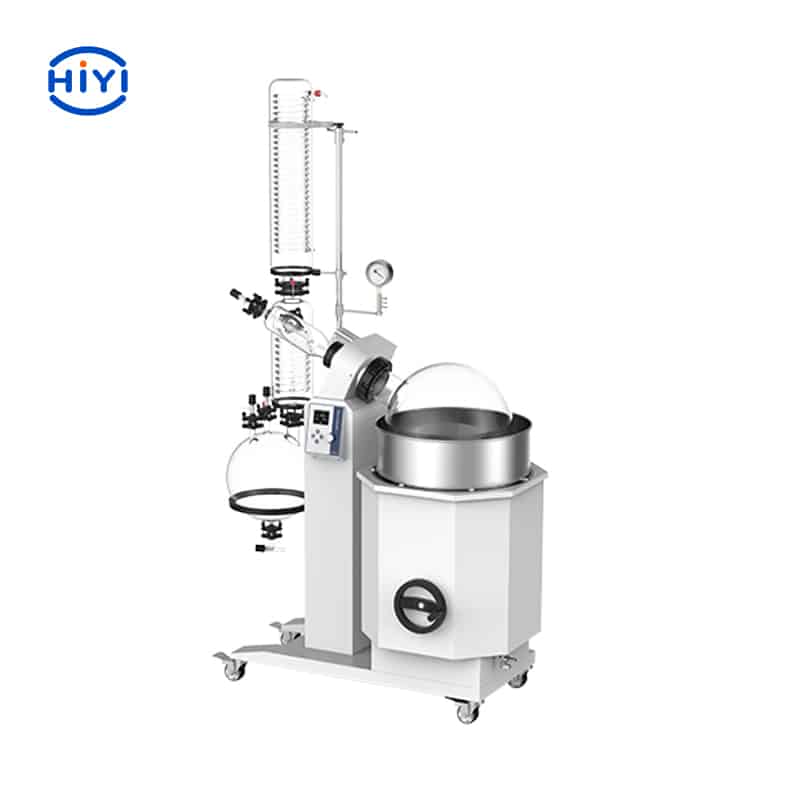

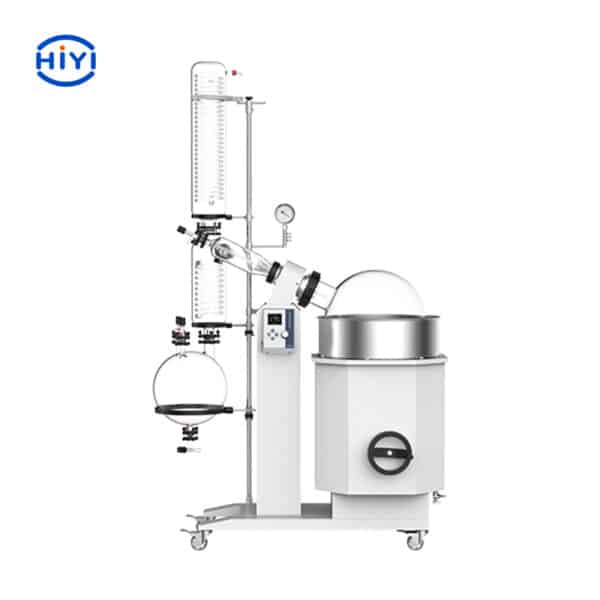

R-1050 Pilot-Plant 50L Rotary Evaporator
Features:
● Patented technology of double sealing of Teflon(PTFE) and FV rubber ensures the negative pressure level.
● Automatic switch valve makes continuous collection possible without affecting vacuum degree and without stopping distillation
● Teflon discharge valve is corrosion resistant and contamination free
● Water bath jacket protecting operator from scalding by hot liquid
* CE certificate, Test report, ISO certificates (ISO-9001, ISO 14001, ISO-45001) available
Display & Motor
* Safety concern.
| Model | R-1050 | |
| Power Supply | 3~380V, 50Hz | |
| Motor Power | 250 W | |
| Working Environment | 5~35C | |
|
Water Bath |
Temperature | Room Tem+5C~95 C |
| Temp Accuracy | ± 1 C | |
| Size | Φ550 * 320mm | |
| Capacity | 77 L | |
| Heating Power | 6.0 kW | |
| Media | Water Only | |
| Temperature Control | Keypad Setting, Digital Display | |
| Material | SUS 304 | |
| Condenser | Type | Vertical |
| Cooling Surface | 11500 cm2 + 6070 cm2 | |
|
Evaporation Flask |
Capacity | 50L |
| Diameter | ∅125mm | |
| Evaporating Speed | Water 9.0 L/h;
Ethanol 24.5 L/h |
|
| Rotating Speed | 20~110 rpm | |
| Speed Control | Knob Setting, Digital Display | |
| Receiving Flask Capacity | 20L | |
| Vacuum | Ultimate Vacuum | ≤ 399.9Pa (3mmHg) |
| Vacuum Sealing | PTFE + Viton Gaskets (double sealing) | |
| Lift | Lifting Function | Electrical Lifting |
| Lifting Distance | 0~180mm | |
| Safety Protection | Dry-run, Over-temp shut-off, Fuse protections | |
| Dimension (mm) | 1345W×770D× 2230H | |
| Net Weight | 140 KG | |
| Package | Wooden case | |
