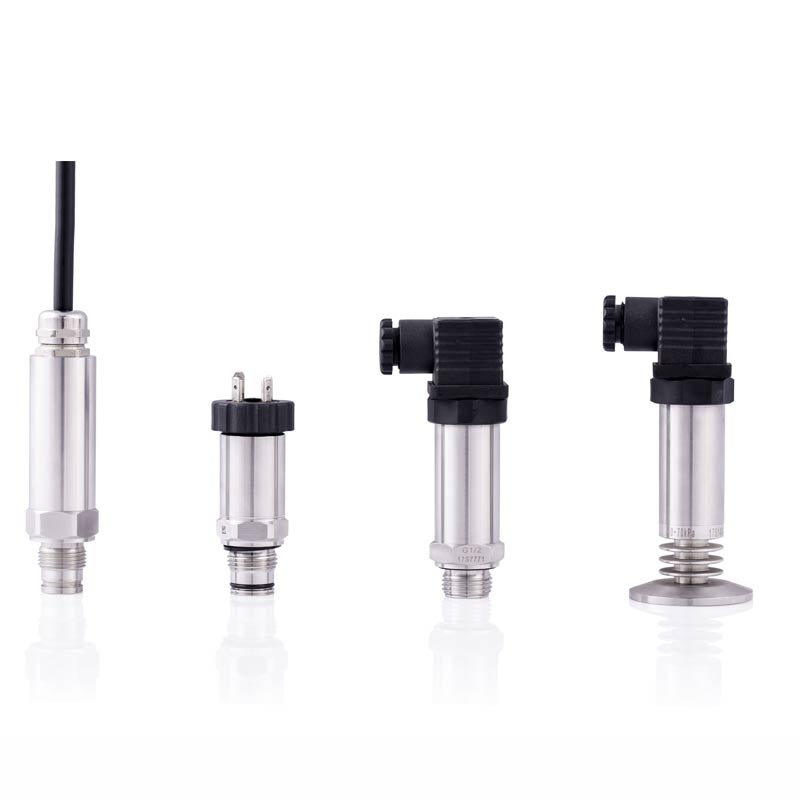

Sanitary Flush Diaphragm Pressure Transmitter
1,520.00৳
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
Products Description
PT206 series of pressure transmitter designed for food,medicine,health and wine industry for pressure measuing with hight accuracy and stable performance.
The products are made of stainless steel. the pressure sensing elements are selected from well-known international brands. The products are approved with CE ISO9001. Customized structures and output formats can be designed according to special application requirements .
Feature
● MEMS technology
● Imported silicon sensor employed
● Diaphragm :316L
● CE certificate
● Full temperature range compensation
● Intrinsic safety
Applications
● Industrial process control
● food medicine,health and wine industry
Product Features
● MEMS technology
● Imported silicon sensor employed
● Diaphragm :316L
● CE certificate
● Full temperature range compensation
● Intrinsic safety
Product Specification
|
pressure medium |
gas liquid compatible stainless steel |
|
pressure ranges |
-1~0.1 bar 0~0.1…1000bar |
|
overload pressure |
300%FS(<700bar) 200%FS(<100bar) |
|
output signal |
4~20mA, 0~5V, 0~10V, 1~5V,0.4-4.5V |
|
accuracy |
0.25% FS ,0.5% FS |
|
load resistance |
RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output) |
|
long term stability |
0.25%FS/year |
|
supply voltage |
10~30V |
|
compensated temperature range |
-10~70°c |
|
operating temperature range |
-40~+85°c (typical) -40~ +125°c |
|
storage temperature range |
-40~+120°c |
|
temperature coefficient of zero |
0.3%FS/10°c |
|
temperature coefficient of span |
0.3%FS/10°c |
|
insulation resistance |
100MΩ@ 50VDC |
|
process connection |
G1/4 or others |
|
electrical connection |
DIN 43650 or others |
|
material of wetted part |
1Cr18Ni9Ti |
|
material of pressure membrane |
316L |
|
material of housing |
1Cr18Ni9Ti |
|
weight |
185g |
