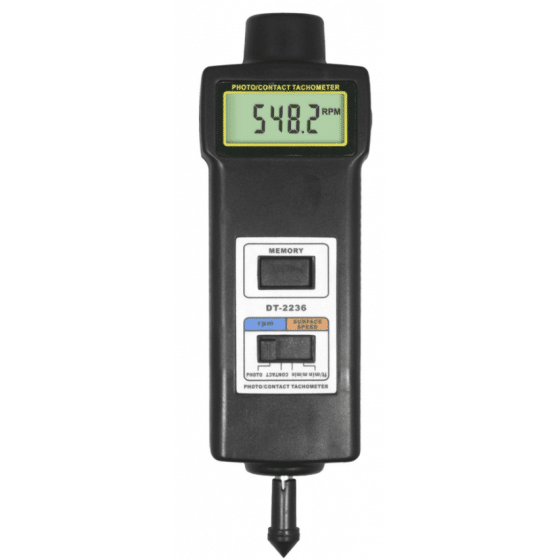

Tachometer
⛟ Stock products delivery time 1-3 working days. 🔥
✈ Out-of-stock products delivery time 10-20 working days. 🚀
☎️ Contact Us for any inquiry
| Place of Origin: | Made in china |
|---|---|
| Brand Name: | meter2u |
| Model Number: | DT-2236 |
| Certification: | ISO9000 |
Features
* Multifunctional, one instrument combines PHOTO TACH.(RPM) & CONTACT TACH. (RPM , m / min, ft / min ).
* Digital display with no guessing errors.
* Wide measuring range and high resolution.
* The last value / max. value / min. value will be automatically stored in memory.
* The use of durable, long-lasting components, including a strong, light weight
ABS-plastic housing assures elegant shape and ease of use.
| Model | DT-2236 | DT-2858 | DT-2857 | DT-2856 | |
| DT2236L(Laser Type) | |||||
| Range | Laser | 2.5~99,999r/min | |||
| Contact | 0.5~19,999r/min | ——- | 0.5~19,999r/min | ||
| Surface Speed | 0.05~1999.9 m/min | ——- | ——- | ||
| 0.2~6560 ft/min | ——- | ——- | |||
| Resolution | Tachometer | 0.1 r/min(0.5~999.9 r/min) 1 r/min(Over 1000 r/min) | |||
| Surface | 0.01 m/min(0.05~99.9 m/min) | ||||
| Speed | 1 m/min(Over 100 m/min),0.1 ft/min(0.1~999.9 ft/min),1 ft/min(Over 1000 ft/min) | ||||
| Accuracy | ±(0.05%n+1d) | ||||
| Sampling Time | 1.0 s(Over 60 r/min) | ||||
| Test Range Select | Automation | ||||
| Memory | Max / Min / Last Value | ||||
| Time Base | Quartz Crystal | ||||
| Laser Tach Detecting Distance | 50~150mm/2~6inch(Typical),Max,300mm/12inch | 50~250mm/2~10inch(Typical),Max600mm/14 inch | 50~150mm/2~6inch(Typical),Max300mm/12inch | ||
| Power Supply | 80mA(Testing) | ||||
| Dimensions | 0~50ºC | ||||
| Weight | 4×1.5V AA Size(UM-3)Battery | ||||
| Standard Accessories | 215x64x38mm | 215x74x32mm | 145x74x32mm | 215x74x32mm | |
| 300g | 280g | 260g | 280g | ||
